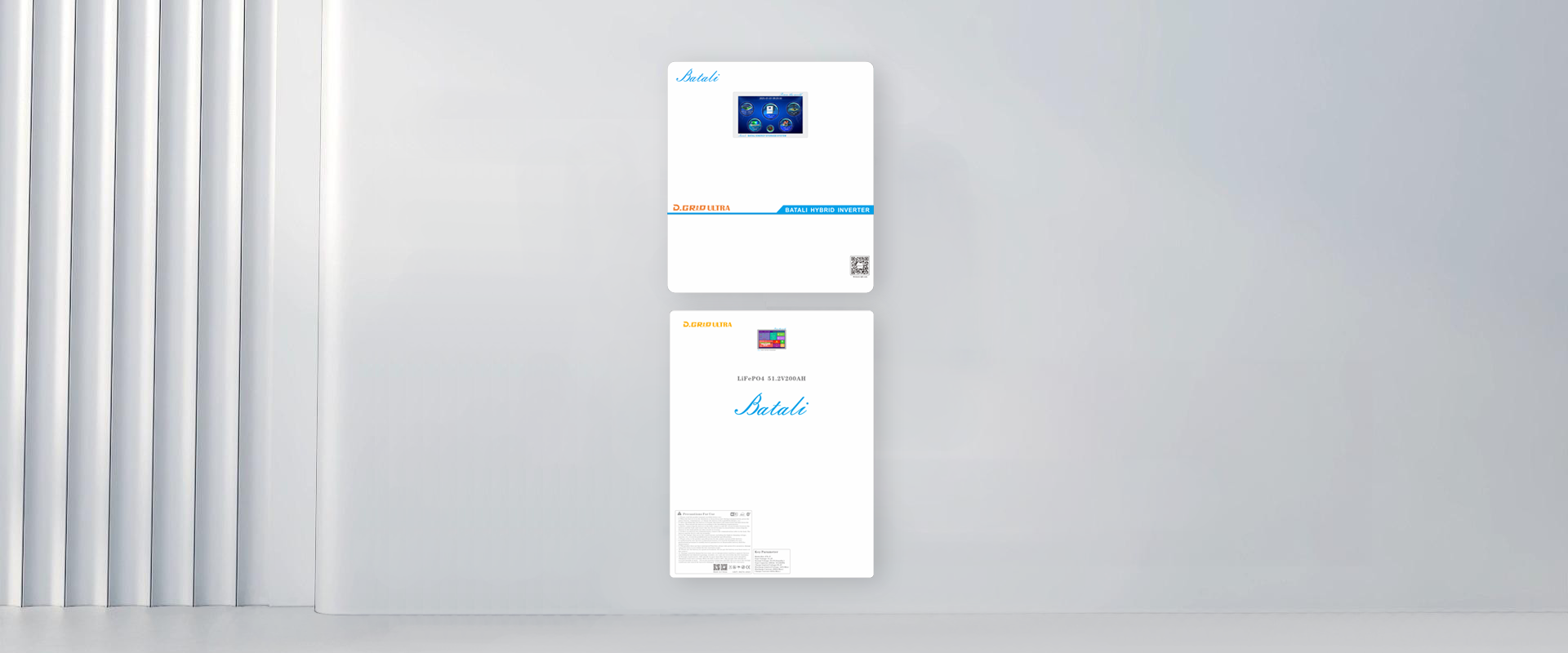

Hybrid Inverter SI-8K-3P11-R1 48V8KW
MODEL
SI-8K-3P11-R1
Battery Data
Battery Type
Lithium iron phosphate battery
Battery Voltage Range
40V~60V
Max.Charging Current
190A
Max.Discharging Current
190A
Charging Curve
CC /CV
External Temperature Sensor
Optional
PV String Input Data
Max.PV Input Power
10400W
PV Input Voltage
370V(100V~500V)
MPPT Range
125V-425V
Start-up Voltage
150V
Max.PV Input Current
18A+18A
No.of MPPT Trackers
2
No.ofStrings Per MPP'T Tracker
2+2
AC Output Data
Rated AC Output and UPS Power
8000W
Max AC Output Power
8800W
Peak Power(off grid)
2 times of rated power, 10 S
AC Output Rated Current
33.4A/35A
Max.AC Current
38.3A/40A
Max Continuous AC Passthrough
90A
Output Frequency and Voltage
50/60Hz; 230V AC
Grid Type
Single Phase
Current Harmonic Distortion
THD<3%(Linear load<1.5%)
Efficiency
Max.Eficiency
97%
MPPT Eficiency
99%
Protection
PV Arc Fault Detection
Integrated
PV Input Lightning Protection
Integrated
Anti-islanding Protection
Integrated
PV String Input Reverse Polarity Protection
Integrated
Insulation Resistor Detection
Integrated
Residual Current Monitoring Unit
Integrated
Output Over Current Protection
Integrated
Output Shorted Protection
Integrated
Output Over Voltage Protection
Integrated
Certifications and Standards
Safety Regulation
IEC62109-1,IEC62109-2
EMC
EN61000-6-1,EN61000-6-3, FCC 15 class B
General Data
Operating Temperature Range
-25~60 ℃,>45℃ Derating
Cooling
Fan
Noise
<30dB
Communication with BMS
RS485;CAN
Weight
35KG
Size
560mm*500mm*139mm
Protection Degree
IP65
Installation Style
Wall-mounted
