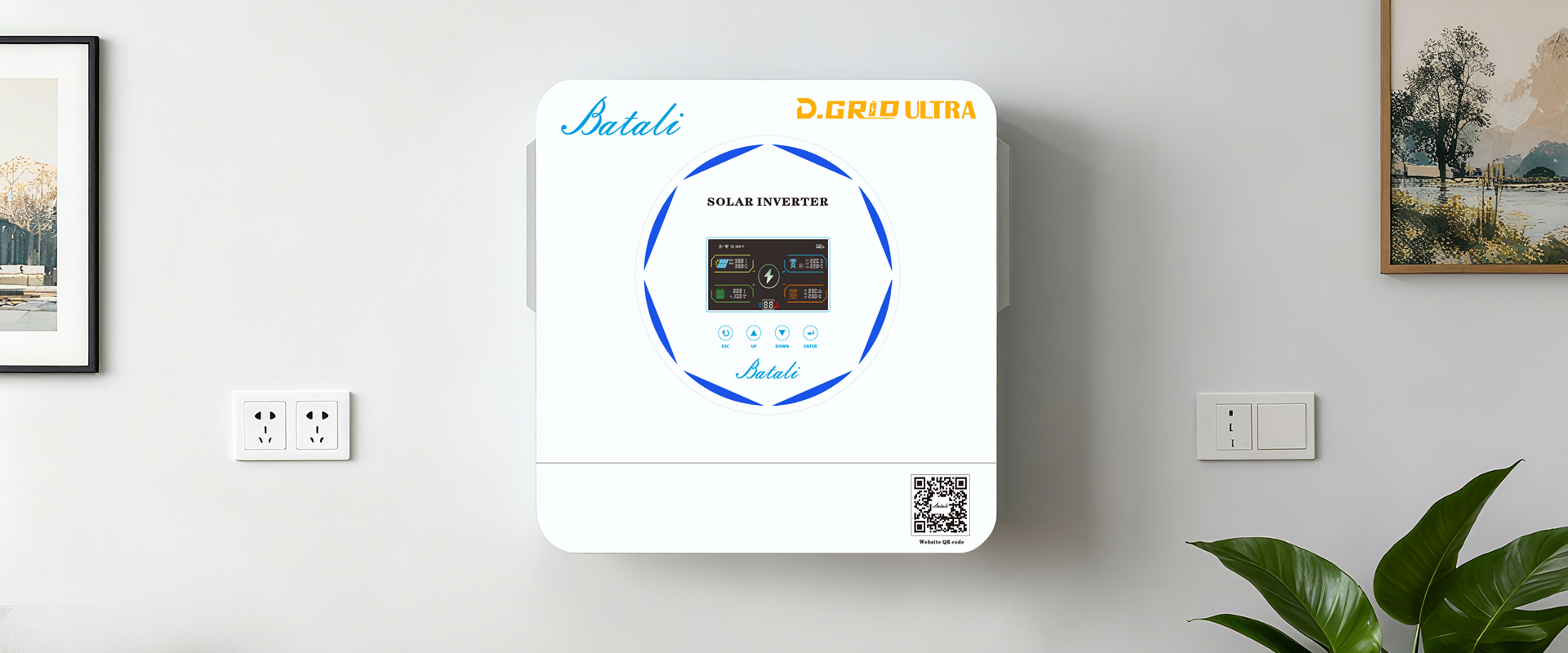

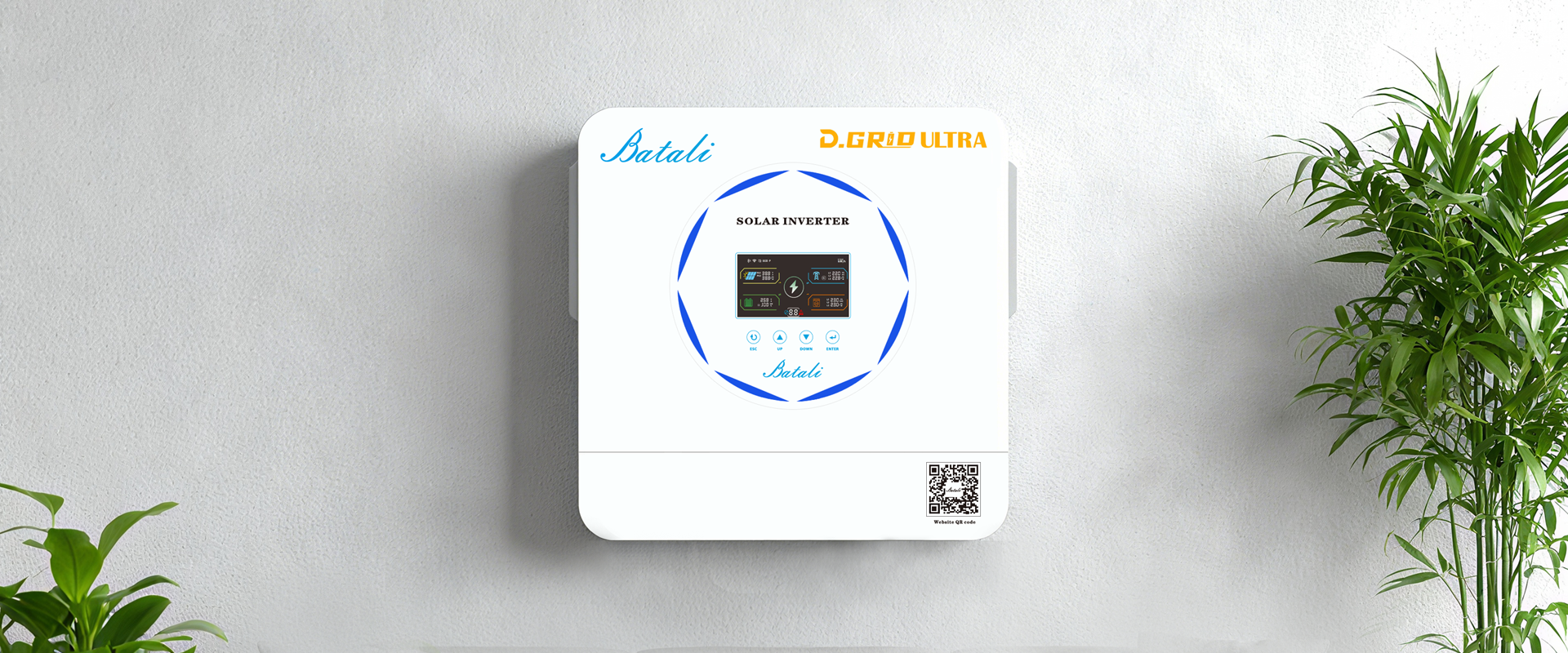

Solar Inverter SI-3K-2P10-R1 24V3.6KW
Inverter Monitoring Management Platform
QR codes for downloading apps on Apple and Android phones
MODEL
SI-3K-2P10-R1
Rated Power
3600W
Communication
RS485/WIFI
AC Output
Max.Rated AC Output Power
3600W
Output Frequency and Voltage
50/60Hz / 230V AC
Overload Protection
5s@≥140%load,10s@110%~140%load
Max.AC Current
15A
Grid Type
Single Phase
Battery
Battery Type
Lithium iron phosphate battery
Battery Voltage Range
20V~29.2V
Max.Charging Current
100A
Max.Discharging Current
140A
Charging Curve
CC /CV
PV String Input
Max.PV Input Power
4000W
PV Input Voltage
60V~500V
Max.PV Input Current
15A
Efficiency
Peak Eficiency
94%
Protection
PV String Input Reverse Polarity Protection
Integrated
Output Over Current Protection
Integrated
Output Shorted Protection
Integrated
Output Over Voltage Protection
Integrated
General
Operating Temperature Range
-25~60 ℃ >45℃ Derating
Cooling
Fan
Humidity
5% to 95% Relative Humidity ( Non-condensing)
Net Weight
7.3KG
Size(L*W*H)
358mm*295mm*100mm
Installation Style
Wall-mounted
